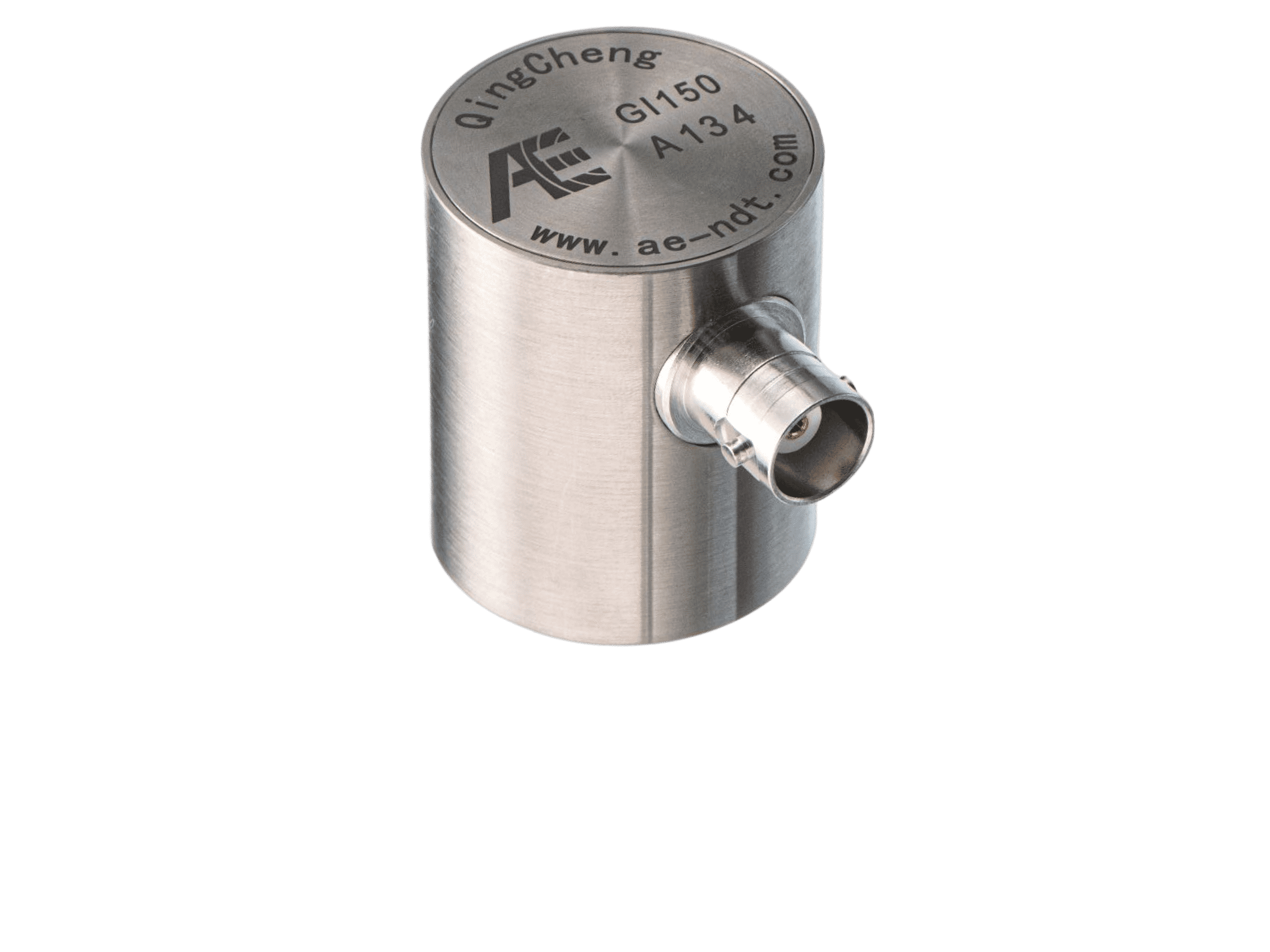

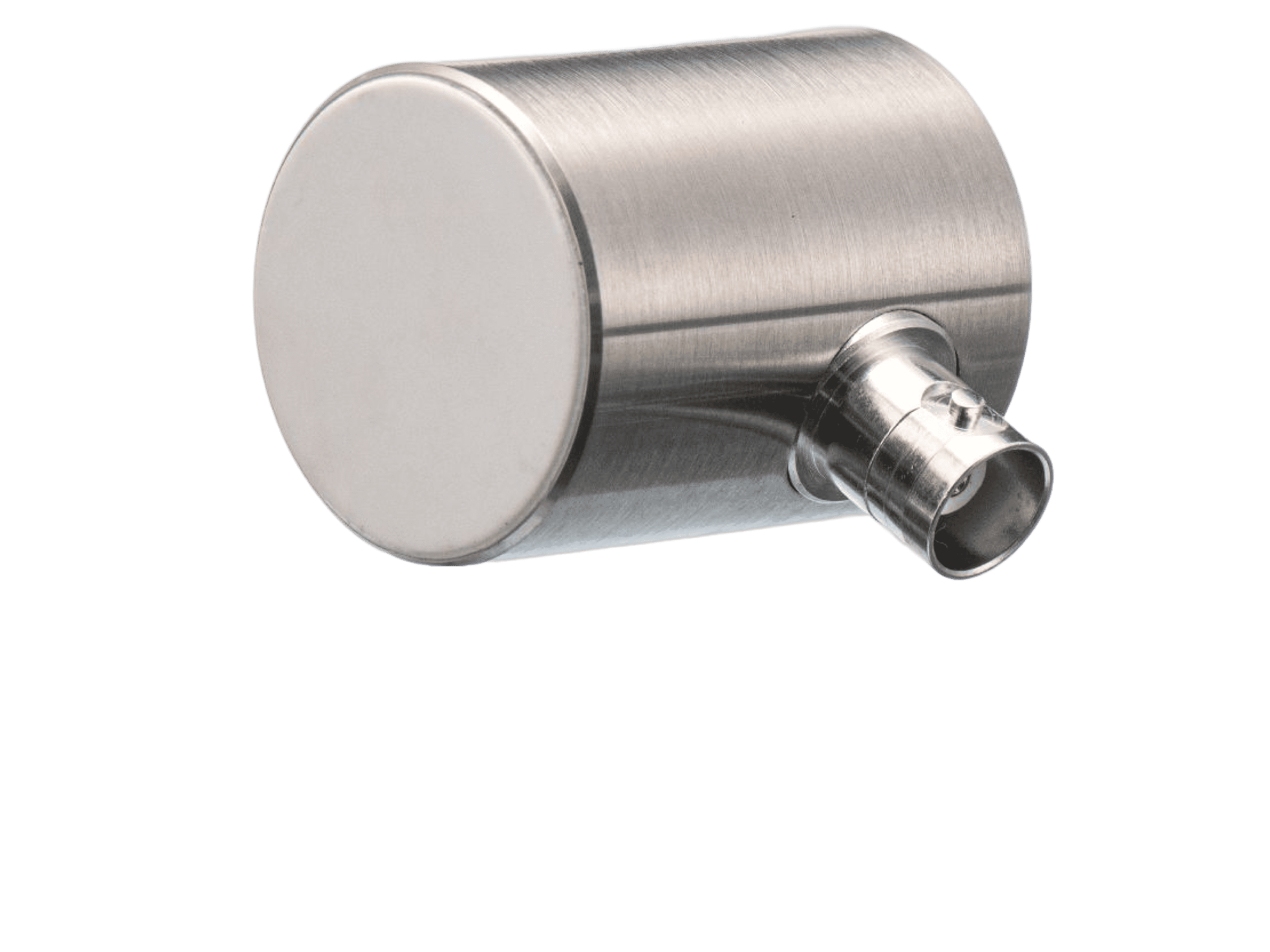

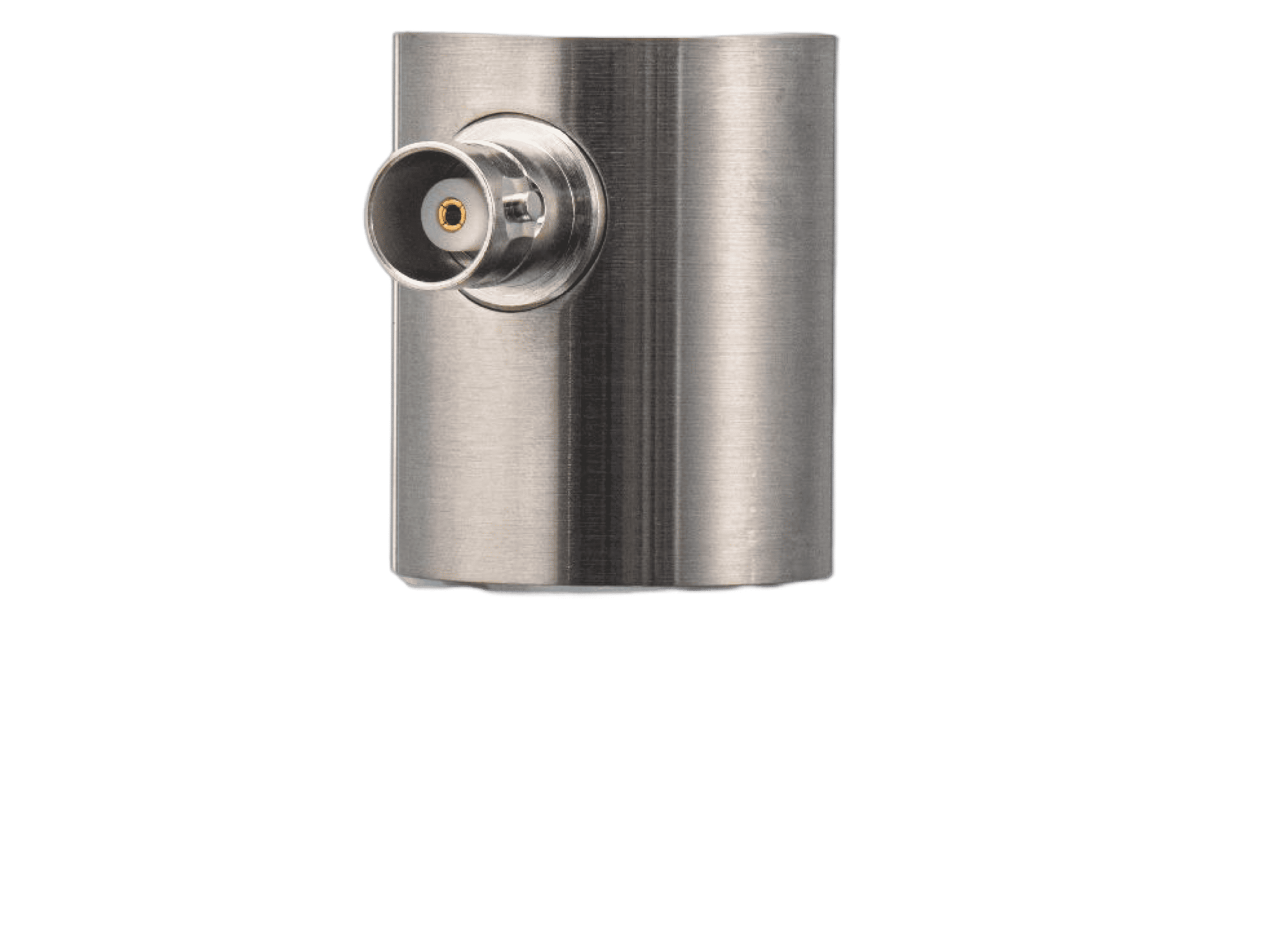

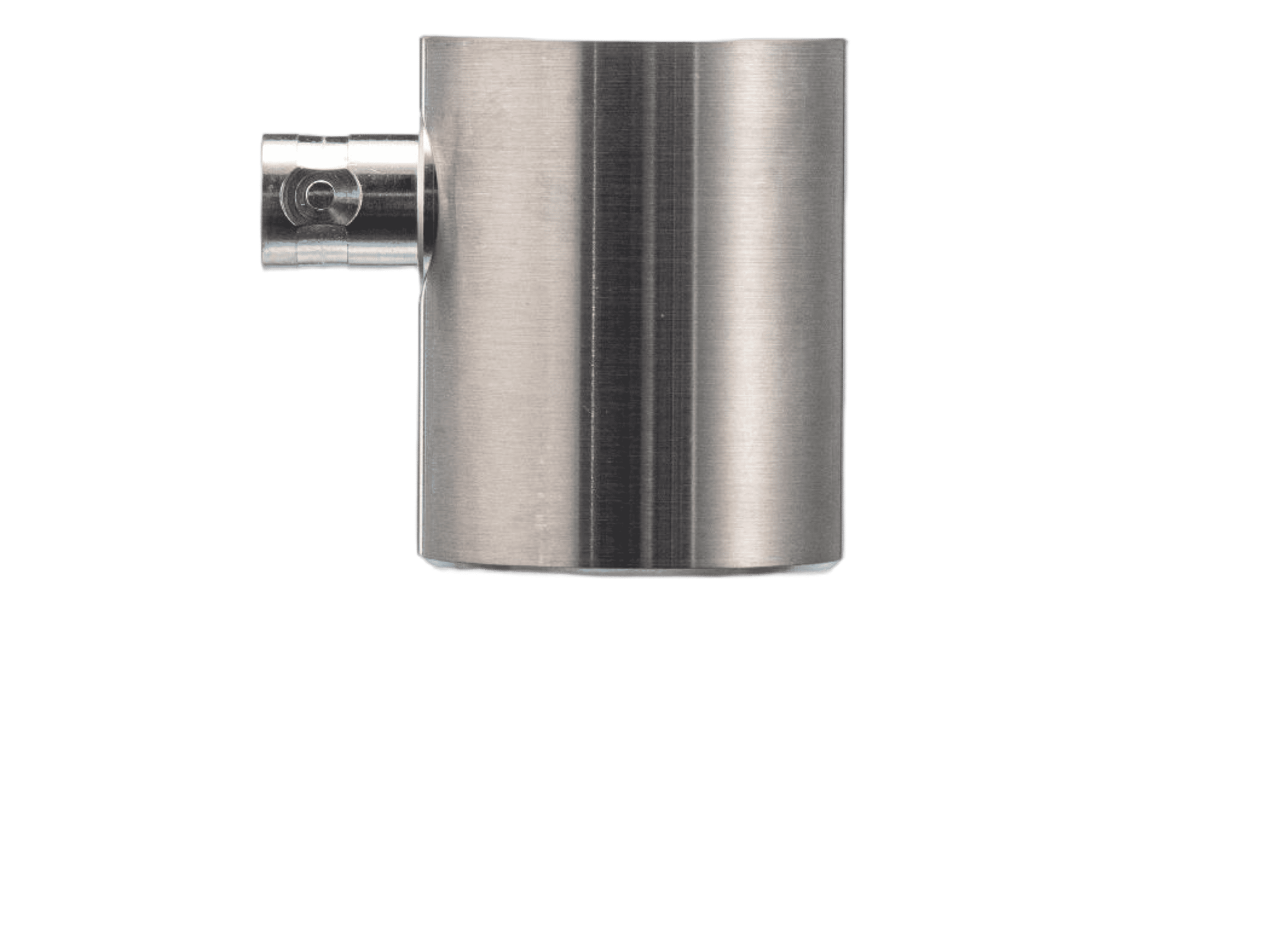

GI150 Integral Preamplifier AE Sensor

Model:

GI150 sensor

Description:

GI150 is a narrowband integrated AE sensor with built-in 40dB28V preamplifier. Stainless steel material makes it reliable and endurable and its 60 kHz-400 kHz bandwidth covering the frequency range of most AE applications.

Features:

Preamplifier built-in,stainless steel case and ceramic interface, BNC connector.

ENQUIRY NOWCONTACT:+86-20-32290092

Applications

GI150 is a piezoelectric acoustic emission sensor with integrated preamplifier, it does not need to be connected to the additional preamplifier, thus simplifying the wiring work. And this sensor is well suited for crack and fault diagnosis of metallic equipment, and for structures health monitoring such as pipelines, pressure vessels, bridges etc. Moreover, GI150 is compatible with the AE detector from other manufacturer.

Technical Specs

Resonant Freq.   Ref V/(m/s)

150kHz

Frequency Range

60kHz-400kHz

Sensitivity Peak   Ref V/(m/s)

>75dB

Integral preamplifier

40dB28V

Preamp. Impedance

50Ω

Working Temp.

-20 to 50

SizeDxH

30×36.5mm

Weight

120 g

Case Material

SUS-304

Face Material

Ceramic

Protecting Grade

IP62

Connector

BNC

Connector Location

Side

Accessories

Signal cable model

RG178/RG316

Hold-down

M36




Further Information



Preamplifier built-in,stainless steel case and ceramic interface, BNC connector.
