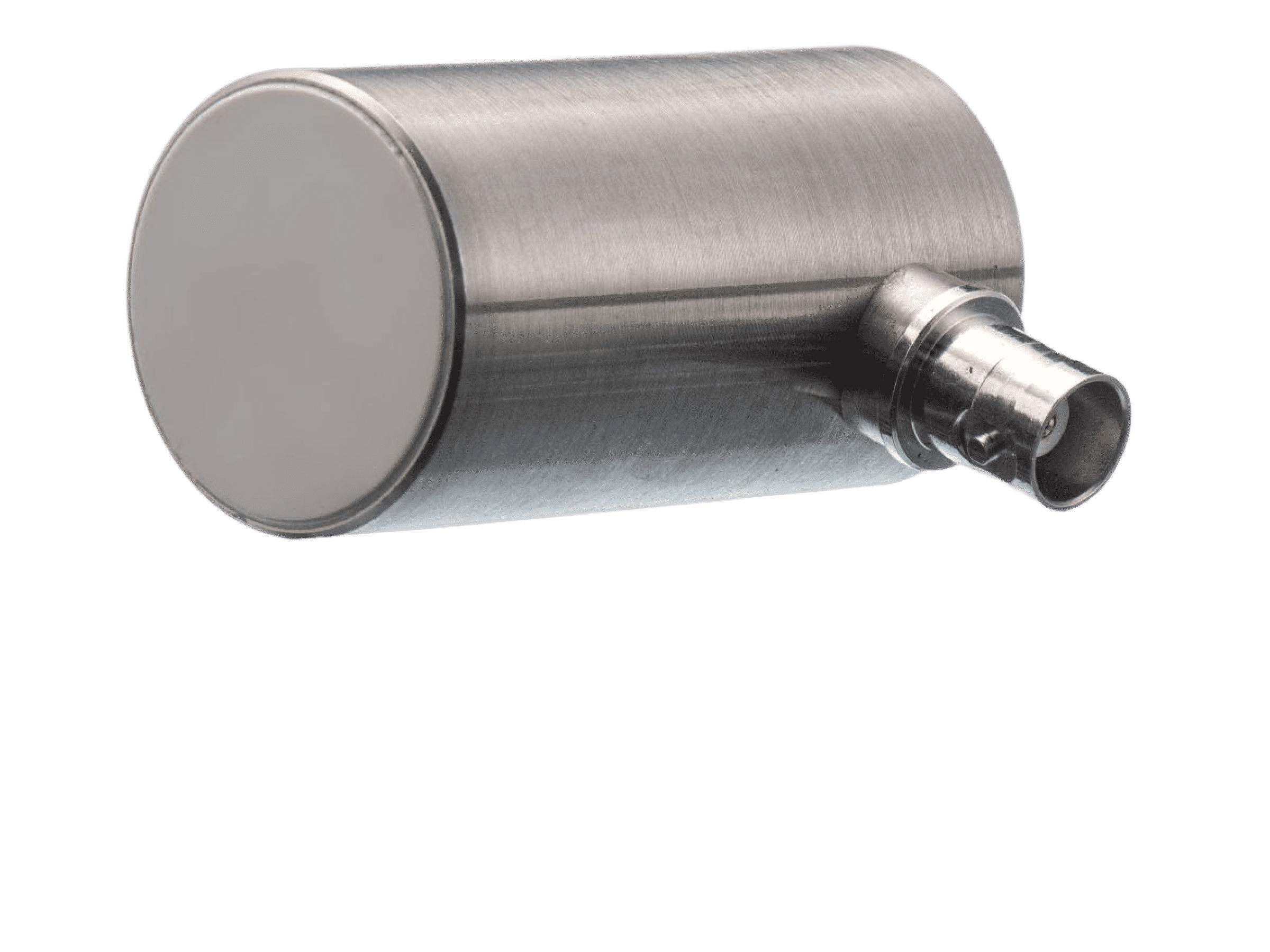

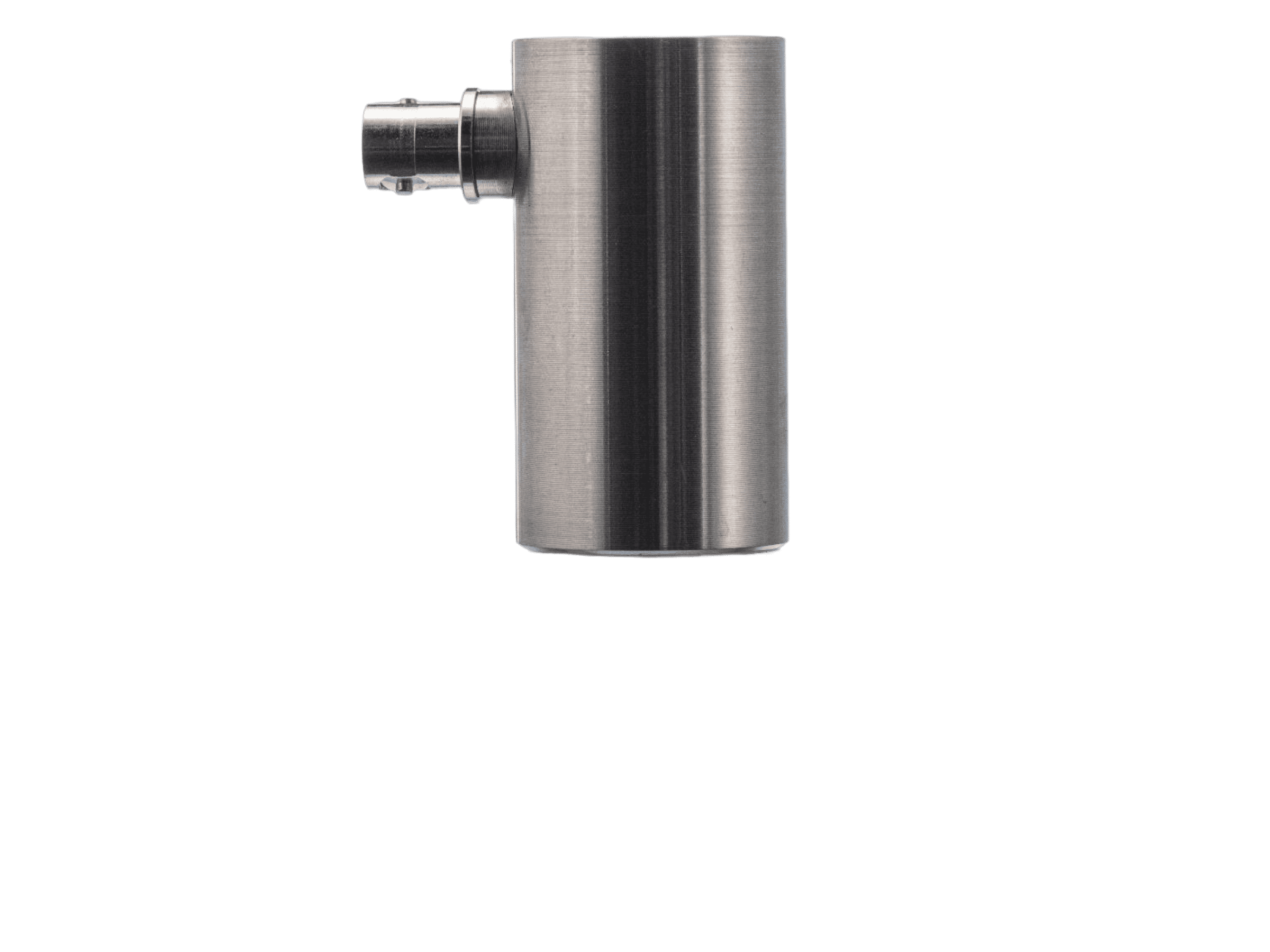

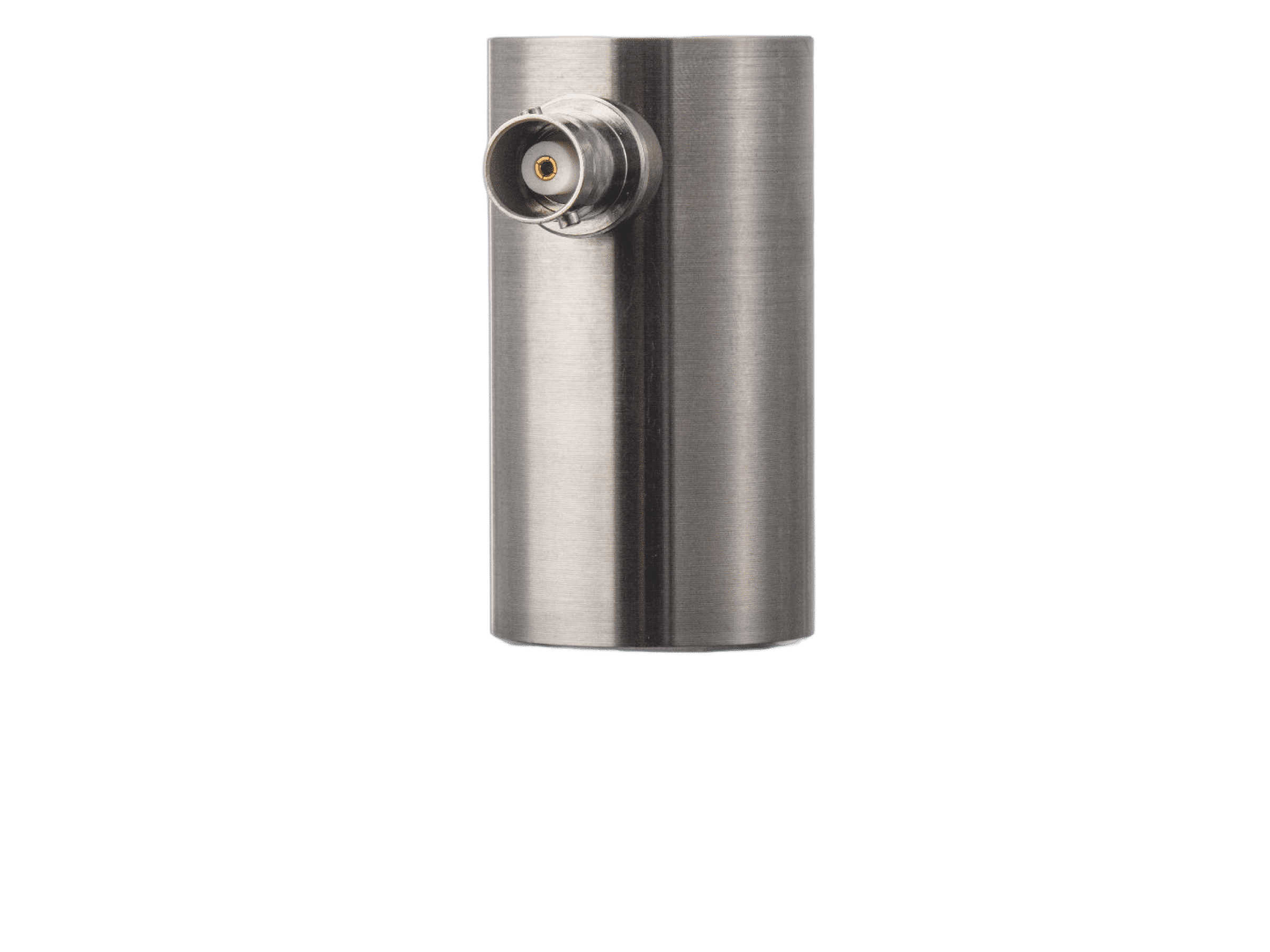

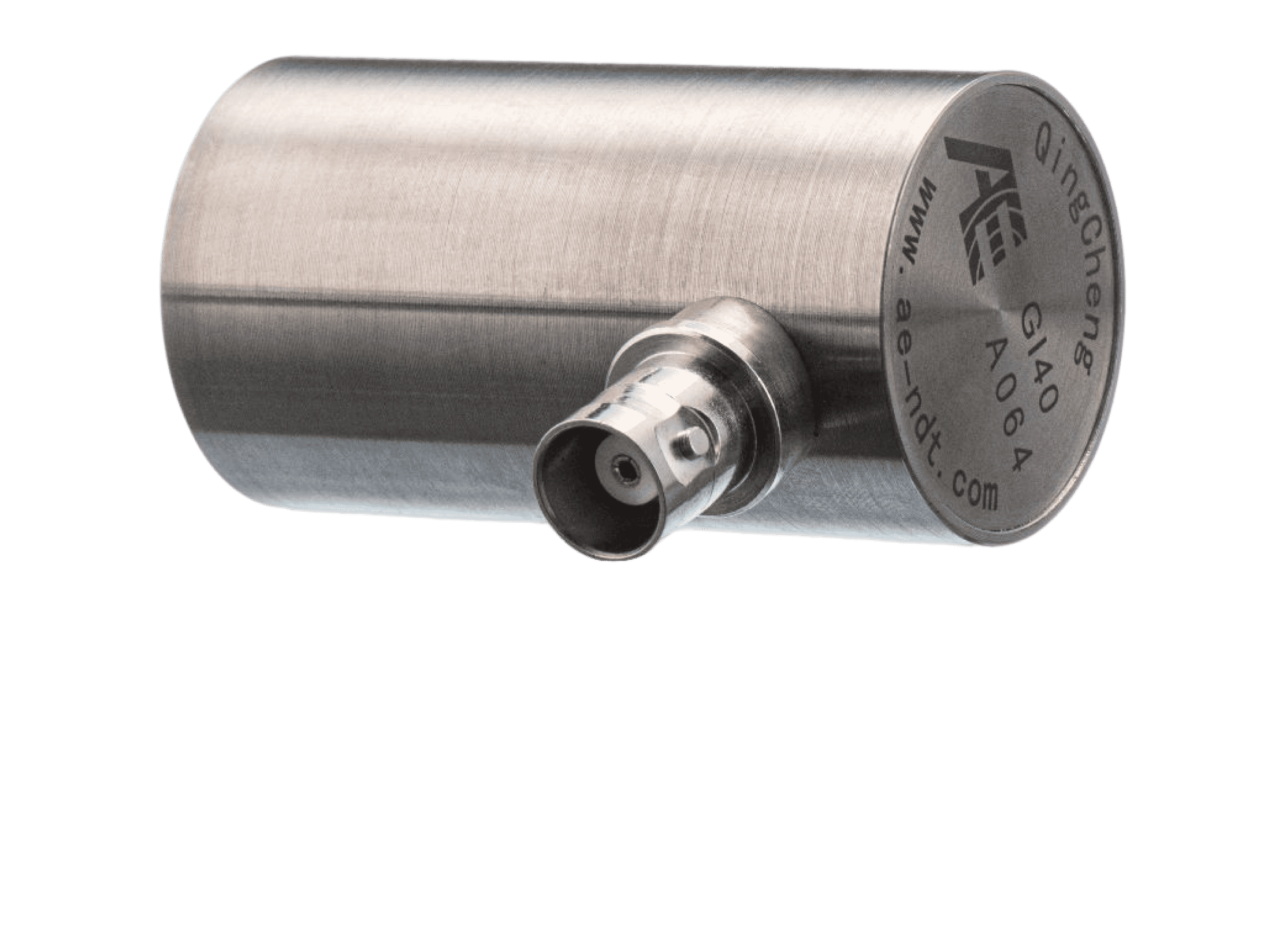

GI40 Integral Preamplifier Acoustic Emission Sensor

Model:

GI40 sensor

Description:

GI40 is a passive piezoelectric acoustic emission sensor with built-in 40dB28V preamplifier. And 15kHz-70kHz bandwidth makes it suitable for detecting low frequency acoustic emission signals.

Features:

Preamplifier built-in,stainless steel case and ceramic interface, BNC connector.

ENQUIRY NOWCONTACT:+86-20-32290092

Applications

GI40 is a passive piezoelectric acoustic emission sensor with integral preamplifier, it does not need to be connected to the additional preamplifier, thus simplifying the wiring work. The low frequency response makes it suited for monitoring large objects like concrete, steel structures and geologic structures. It also could be used for monitoring leakage and corrosion of storage tanks or valves and for detecting partial discharge.


Technical Specs

Resonant Freq.   Ref V/(m/s)

40kHz

Frequency Range

15kHz-70kHz

Sensitivity Peak   Ref V/(m/s)

>75dB

Integral preamplifier

40dB28V

Preamp. Impedance

50Ω

Working Temp.

-20 to 50

SizeDxH

30×57mm

Weight

193 g

Case Material

SUS-304

Face Material

Ceramic

Protecting Grade

IP62

Connector

BNC

Connector Location

Side

Accessories

Signal cable model

RG178/RG316

Hold-down

M36A


Further Information


Preamplifier built-in,stainless steel case and ceramic interface, BNC connector.
