G80 Resonant AE Sensor_20-180kHZ

Model:

G80

Description:

G80 is a passive piezoelectric AE sensor with narrowband. Stainless steel structure makes it reliable and endurable. And 20kHz-180kHz bandwidth makes it suitable for detecting low frequency acoustic emission signals.

Features:

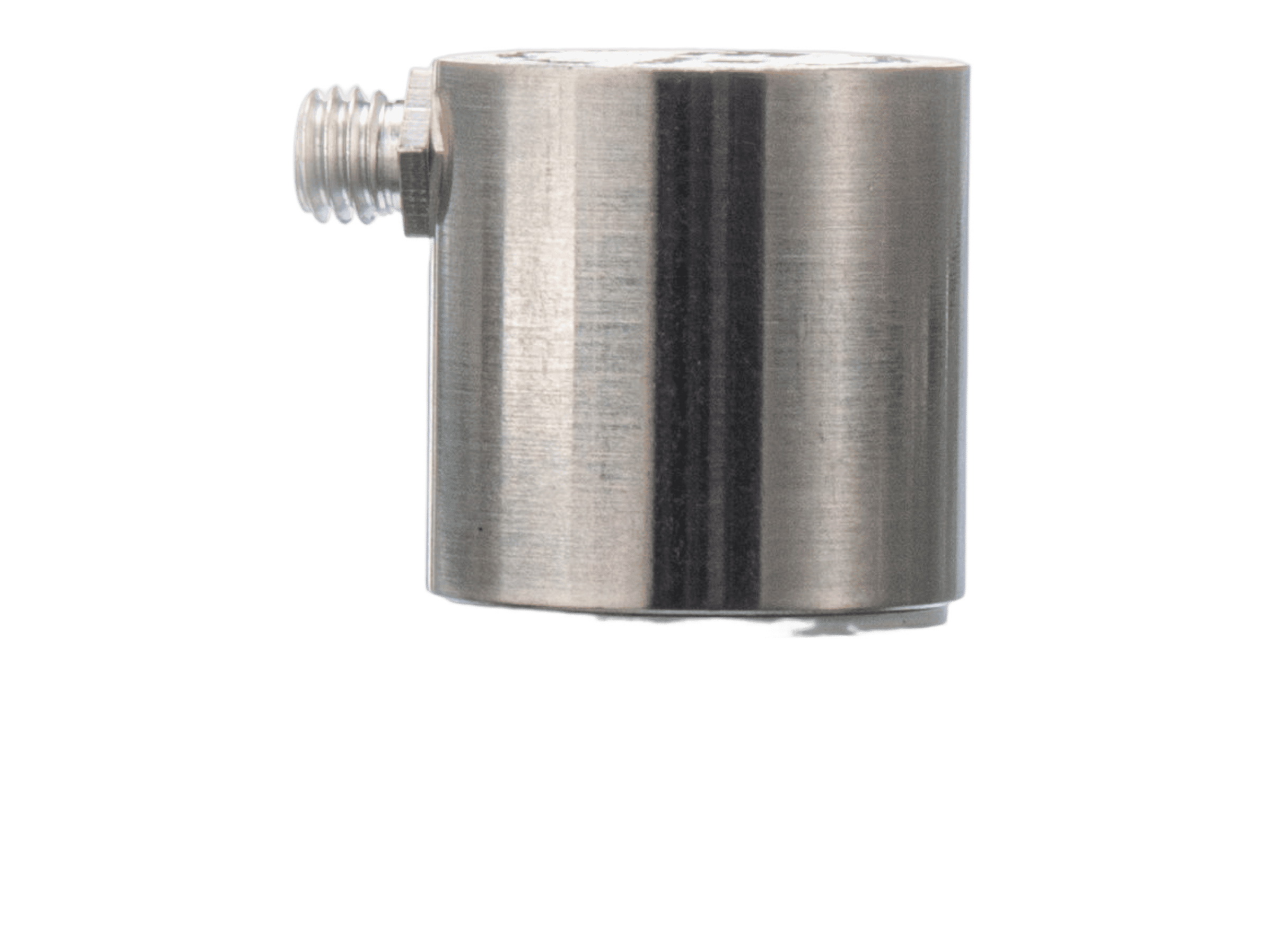

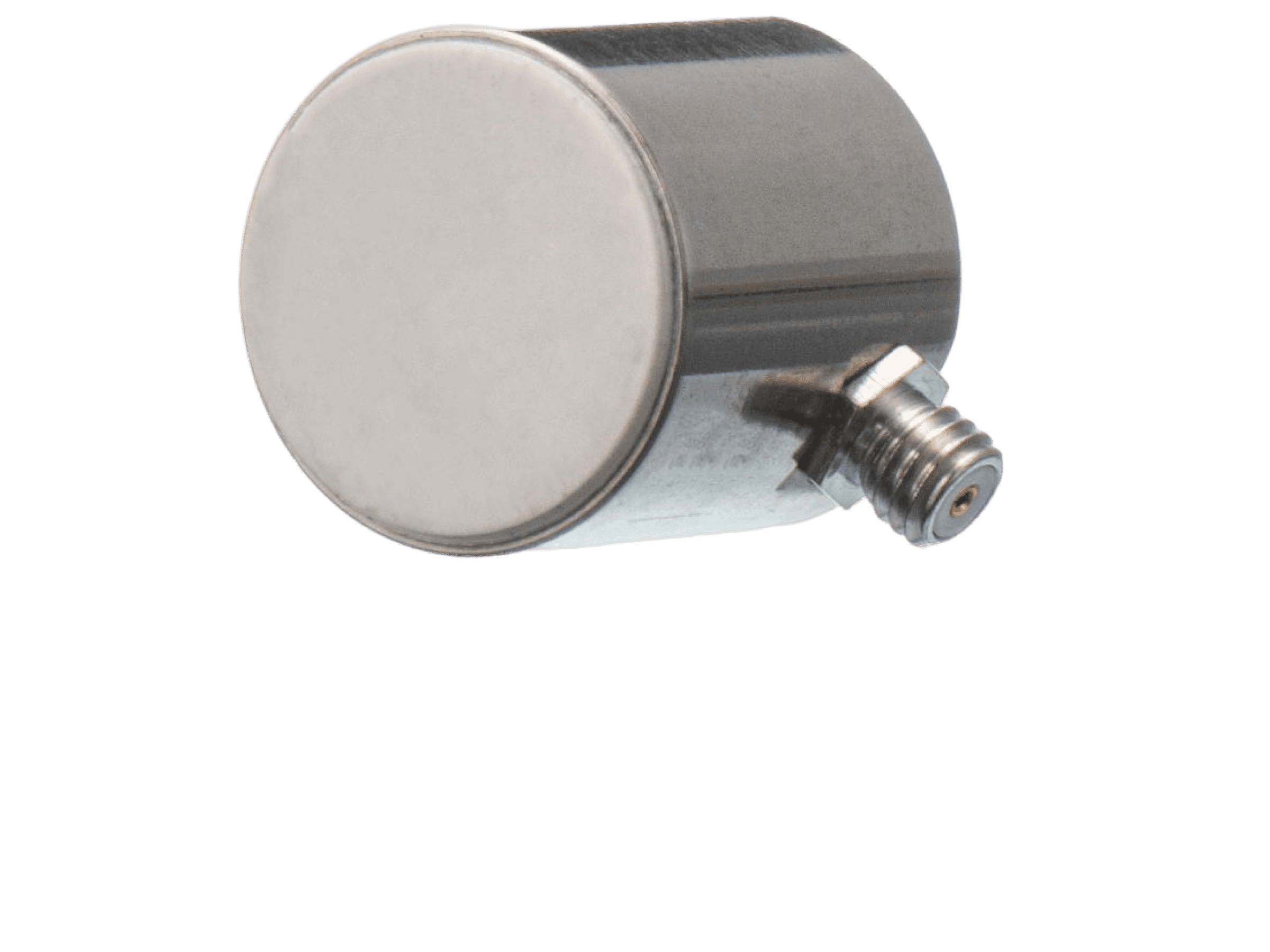

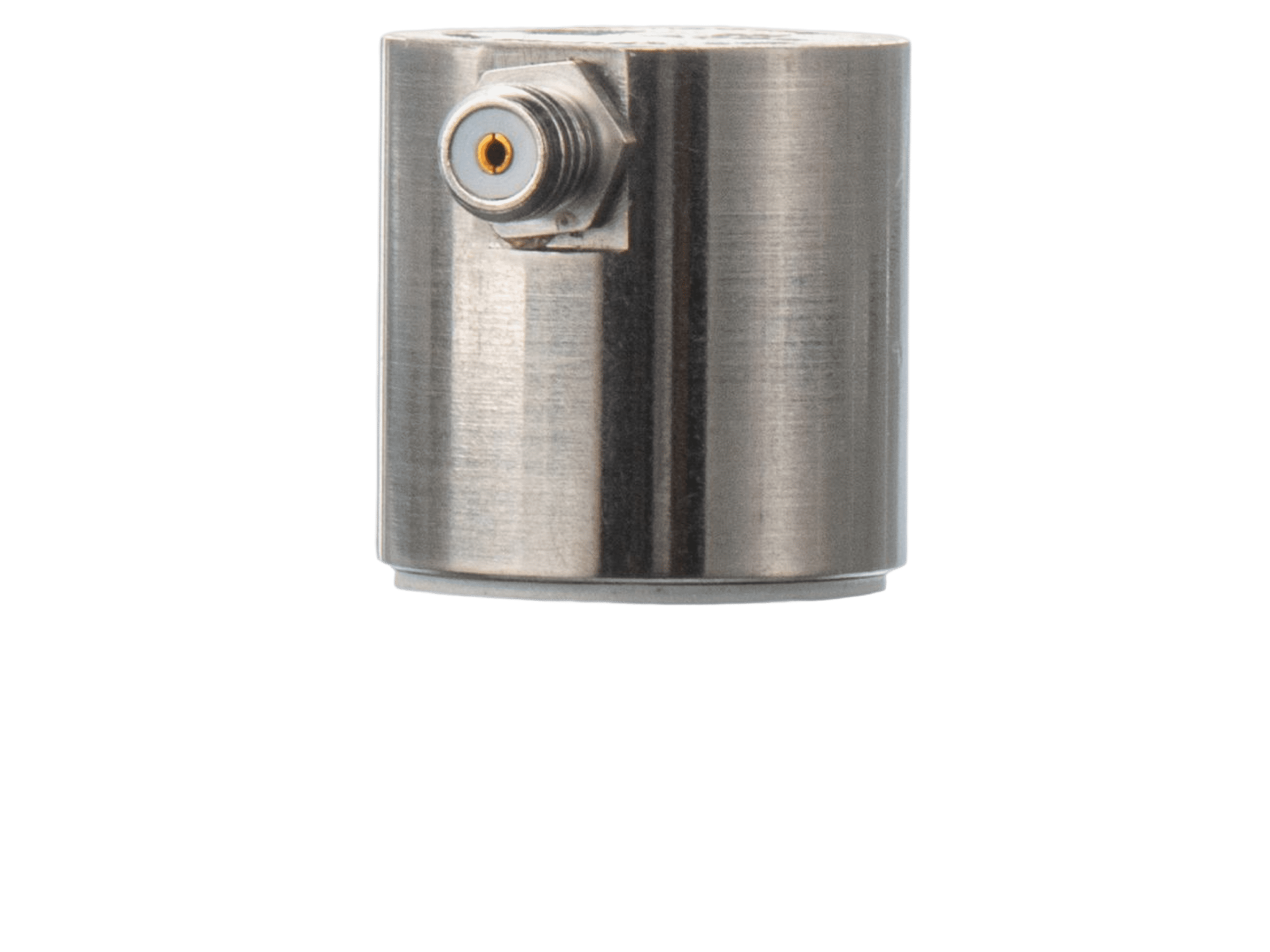

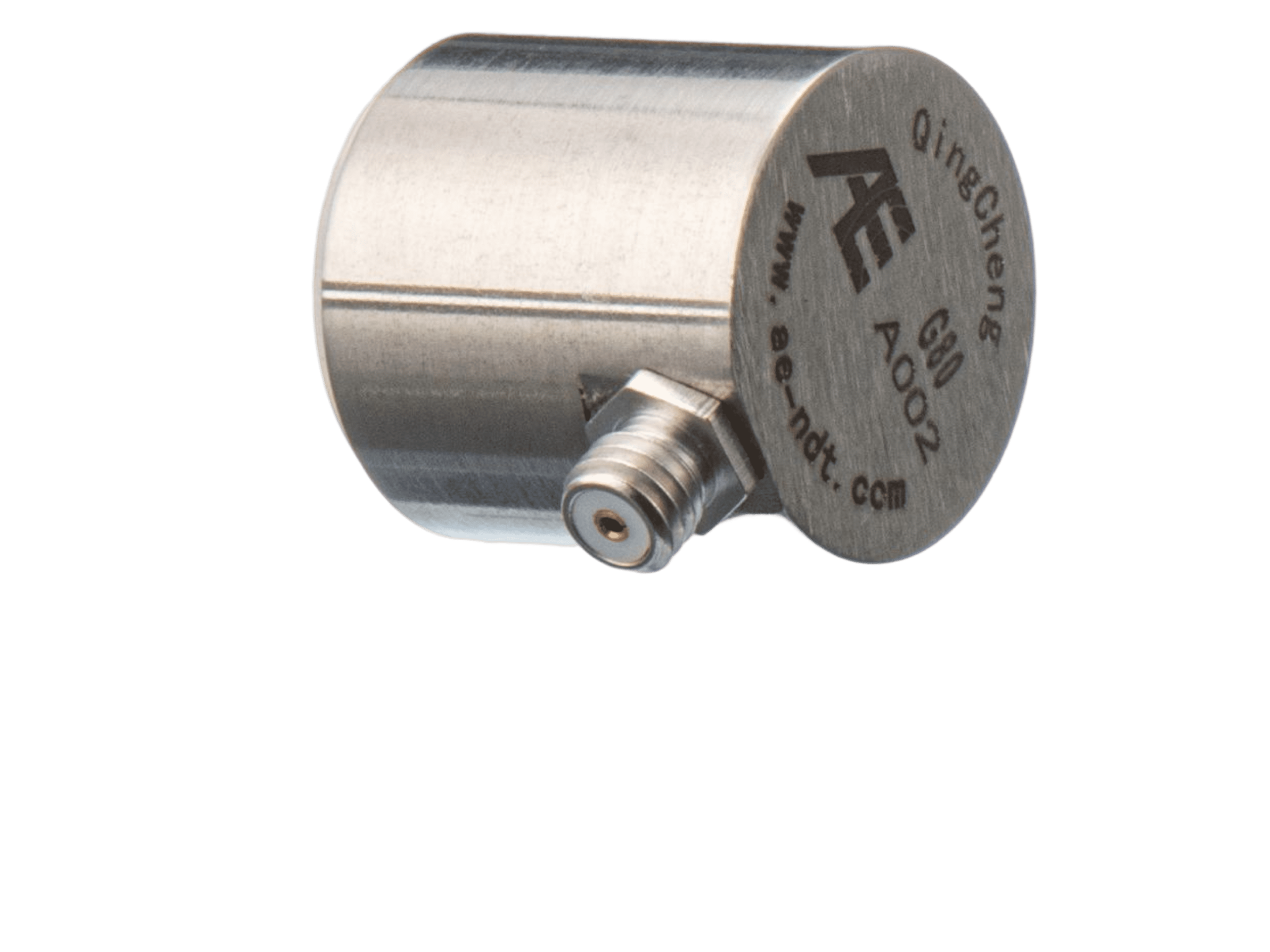

Stainless steel case and ceramic interface, M5 connector. Rugged design, stable performance, good compatibility.

ENQUIRY NOWCONTACT:+86-20-32290092

G80 Resonant AE Sensor 20-180kHZ

Applications

G80 is a passive piezoelectric acoustic emission sensor. The low frequency response makes it suitable for monitoring large objects or objects made of highly attenuating material, such as concrete steel and geologic structures. It also could be used for monitoring leakage of pressure vessels and for detecting partial discharge.


Technical Specs
Resonant Freq.   Ref V/(m/s) 80kHz
Frequency Range 20kHz-180kHz
Sensitivity Peak   Ref V/(m/s) >70dB
Working Temp. -20 to 80℃
Size(DxH) 19×19.5mm
Weight 33g
Case Material SUS-304
Face Material Ceramic
Protecting Grade IP62
Connector M5
Connector Location Side
Accessories
Signal cable model RG178/RG316
Hold-down M20A
Preamplifier PAS/PAV

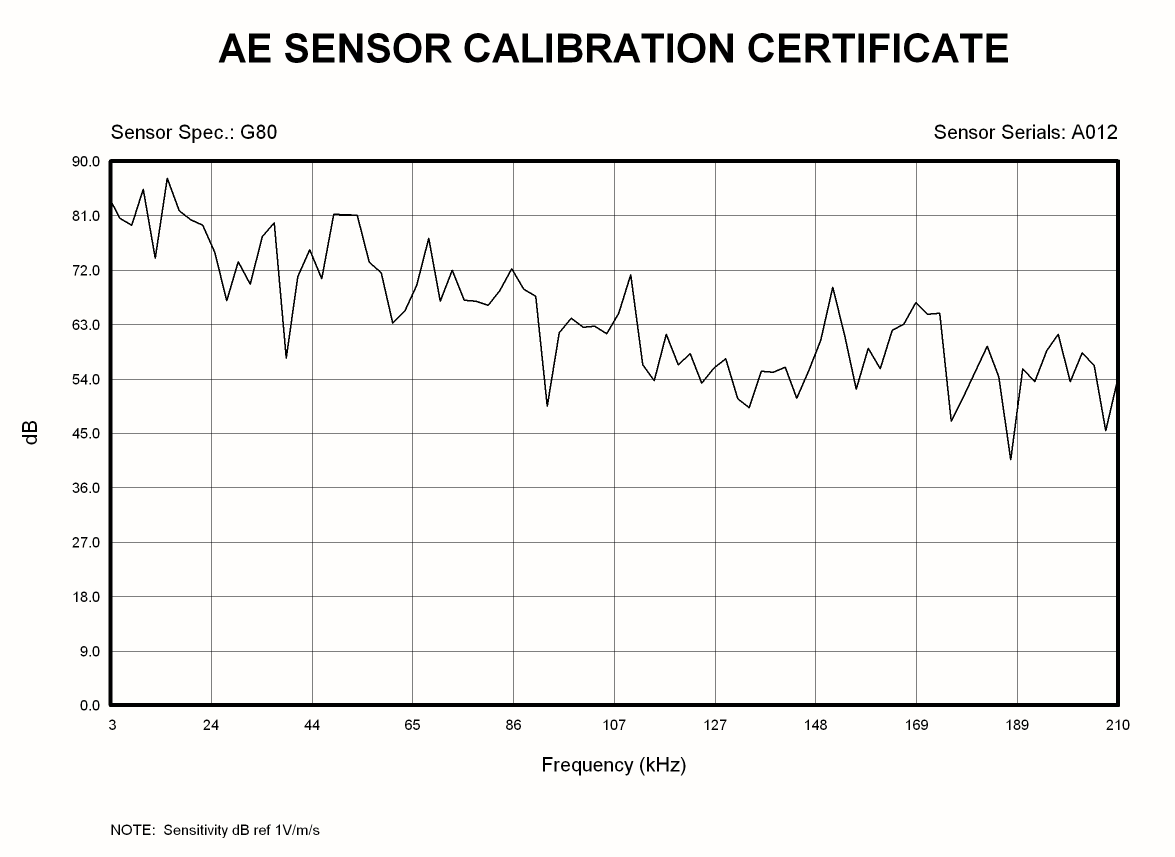

AE Sensor Calibration - G80 Resonant AE Sensor 20-180kHZ

Further Information

Sensor Data Sheet.pdf


Stainless steel case and ceramic interface, M5 connector. Rugged design, stable performance, good compatibility.
