AE Calibrator

Model:

SCAL2

Description:

Designed and developed for the requirements of acoustic emission detector calibration. It can export various standard parametric signals like amplitude, risetime, counts and duration.

Features:

ENQUIRY NOWCONTACT:+86-20-32290092

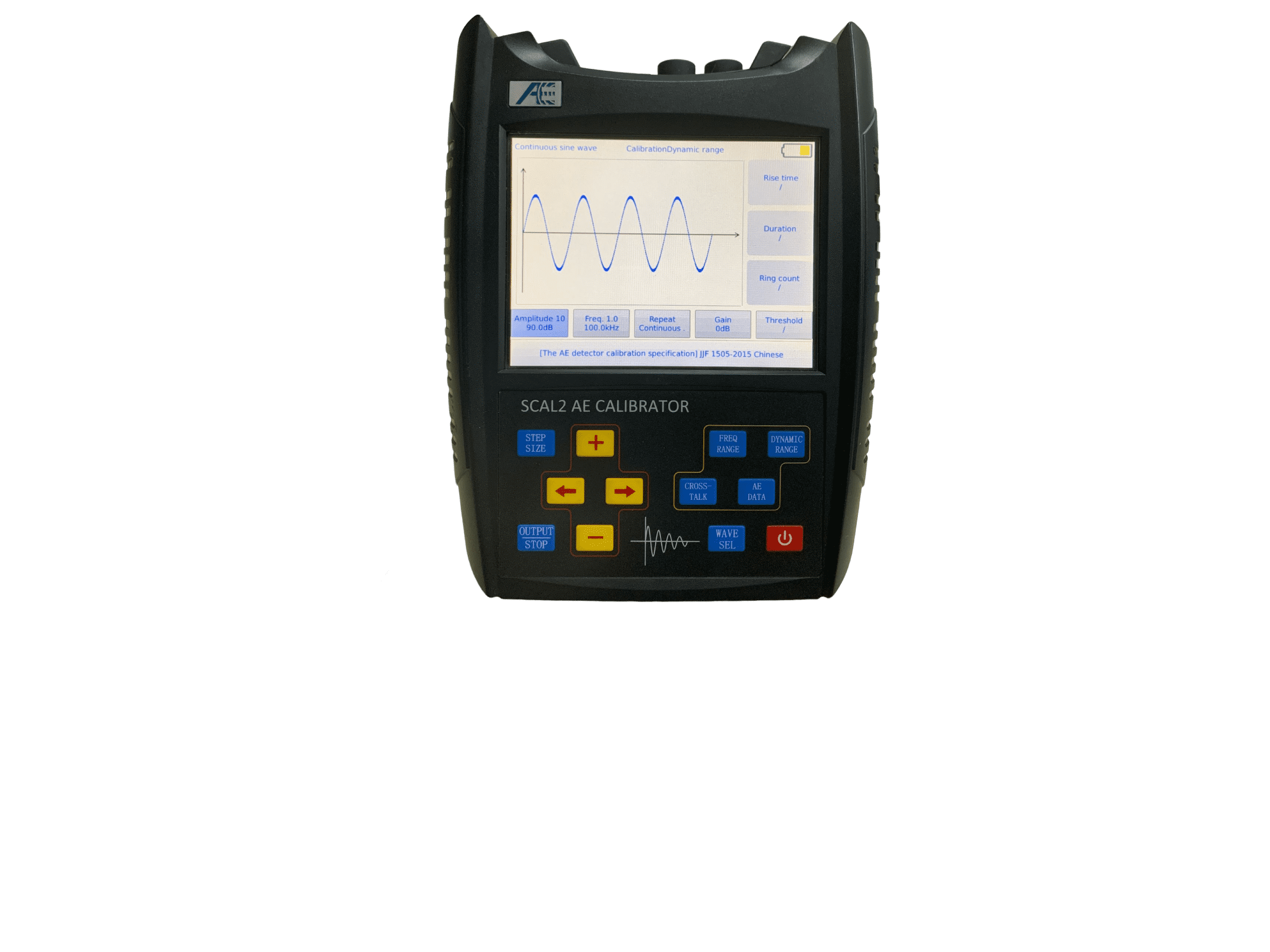

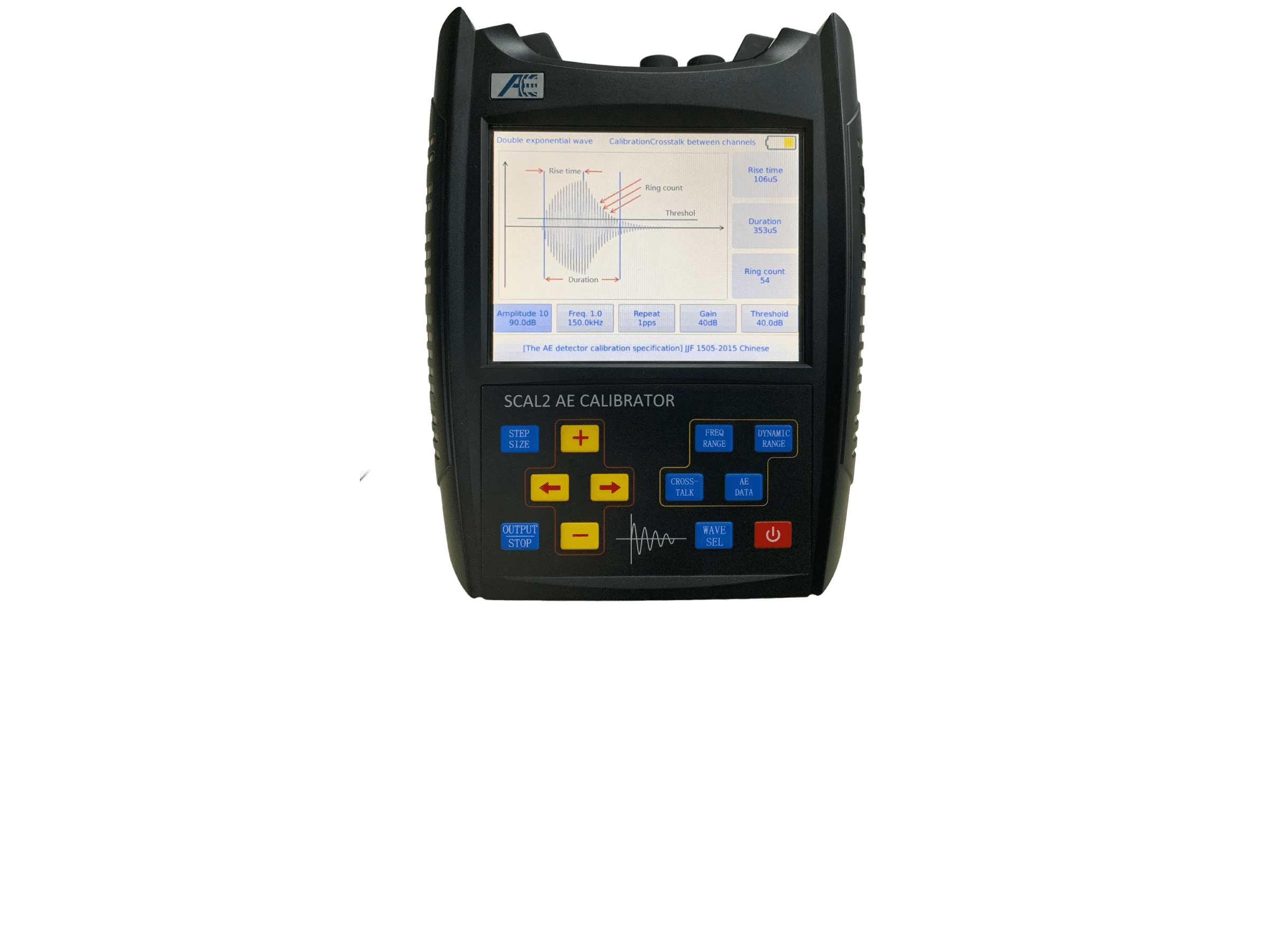

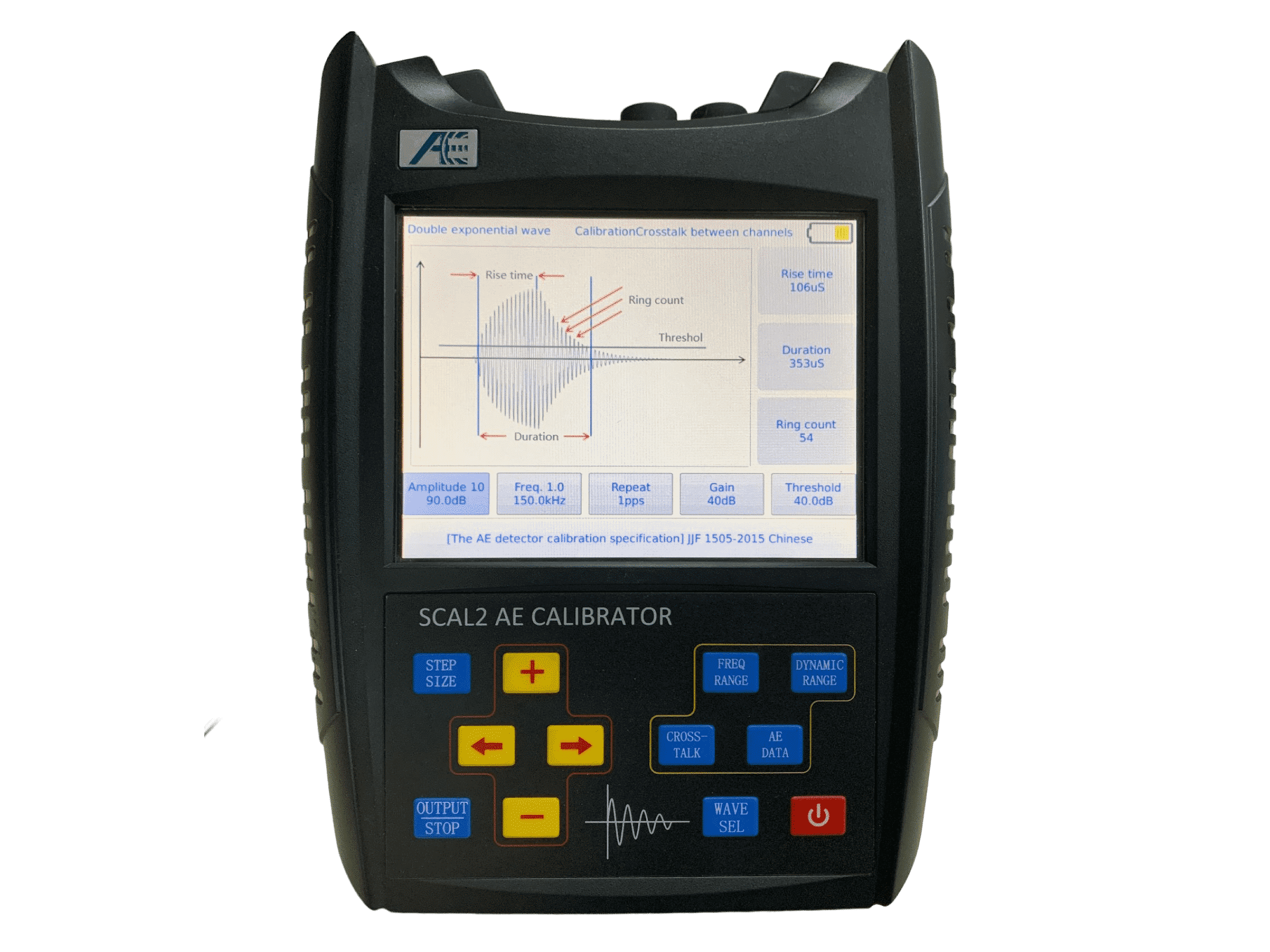

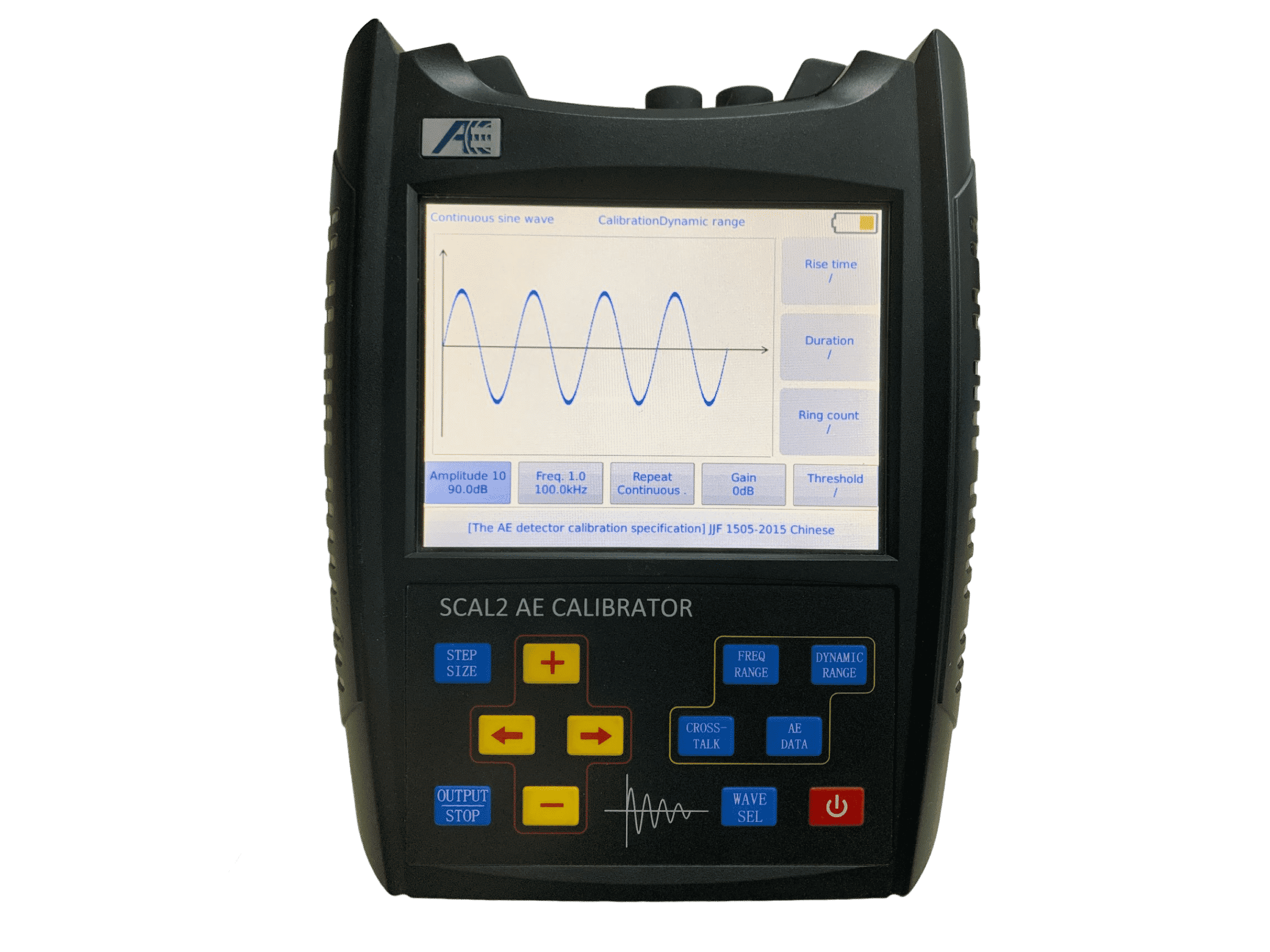

SCAL2 Handheld AE Calibrator




SCAL2 Handheld AE Calibrator are designed and developed for the requirements of acoustic emission detector calibration.  It can export various standard parametric signals like amplitude, rise time, counts and duration.

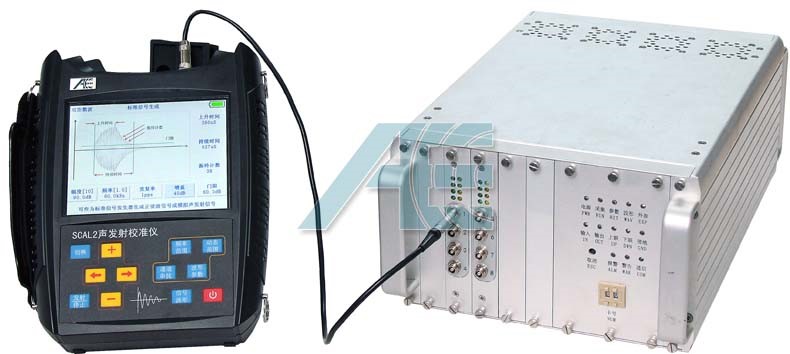

SCAL2 is suitable for calibration of availability of AE detector,  AE sensors and preamplifier before using them, and it is suitable for detecting the working condition of acoustic wave (acoustic emission) detection system in a local environment.

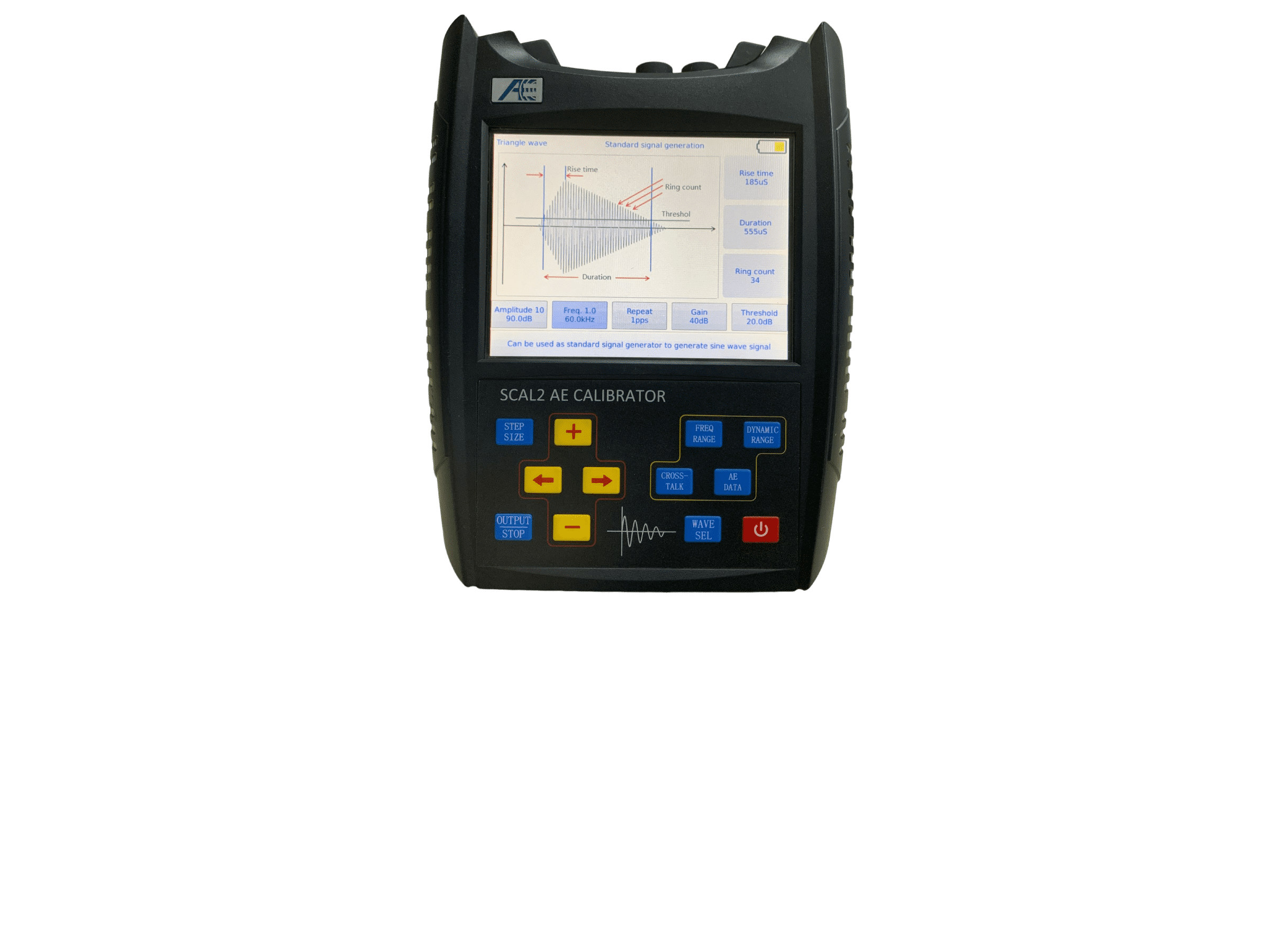

The design of SCAL2 is based onJJF1505-2015 Calibration Specification for  Acoustic Emission Instrumentation.It also can be used as a standard signal generator.



Functional parameter

²   Settable parameters: Waveform type, Amplitude, Frequency, Signal transmission rate, gain, threshold

²   Signal waveform: AE double exponential envelope, AE triangular envelope, Impulse sine wave, Continuous sine wave, Signal impulse wave

²   Signal amplitude of the sine wave: 30dB-100dB

²   Signal amplitude of the AE waveform: 30dB-90dB

²   Signal frequency of the continuous sine wave: 10kHz~1MHz

²   Signal frequency of AE waveform: 30kHz, 60kHz, 150kHz, 300kHz

²   AE characteristic parameter: Rise time, Duration, Counts

²   Signal transmission rate: 1pps, 10pps, 100pps, 1000pps, manual control

²   Preamplifier gain: 0dB, 26dB, 40dB

²   Accuracy: range of amplitude ±0.3dBfrequency range ±0.5%







Physical parameters

²   Protection grade: IP65

²   Battery powered and more than 10h of independent continuous working time

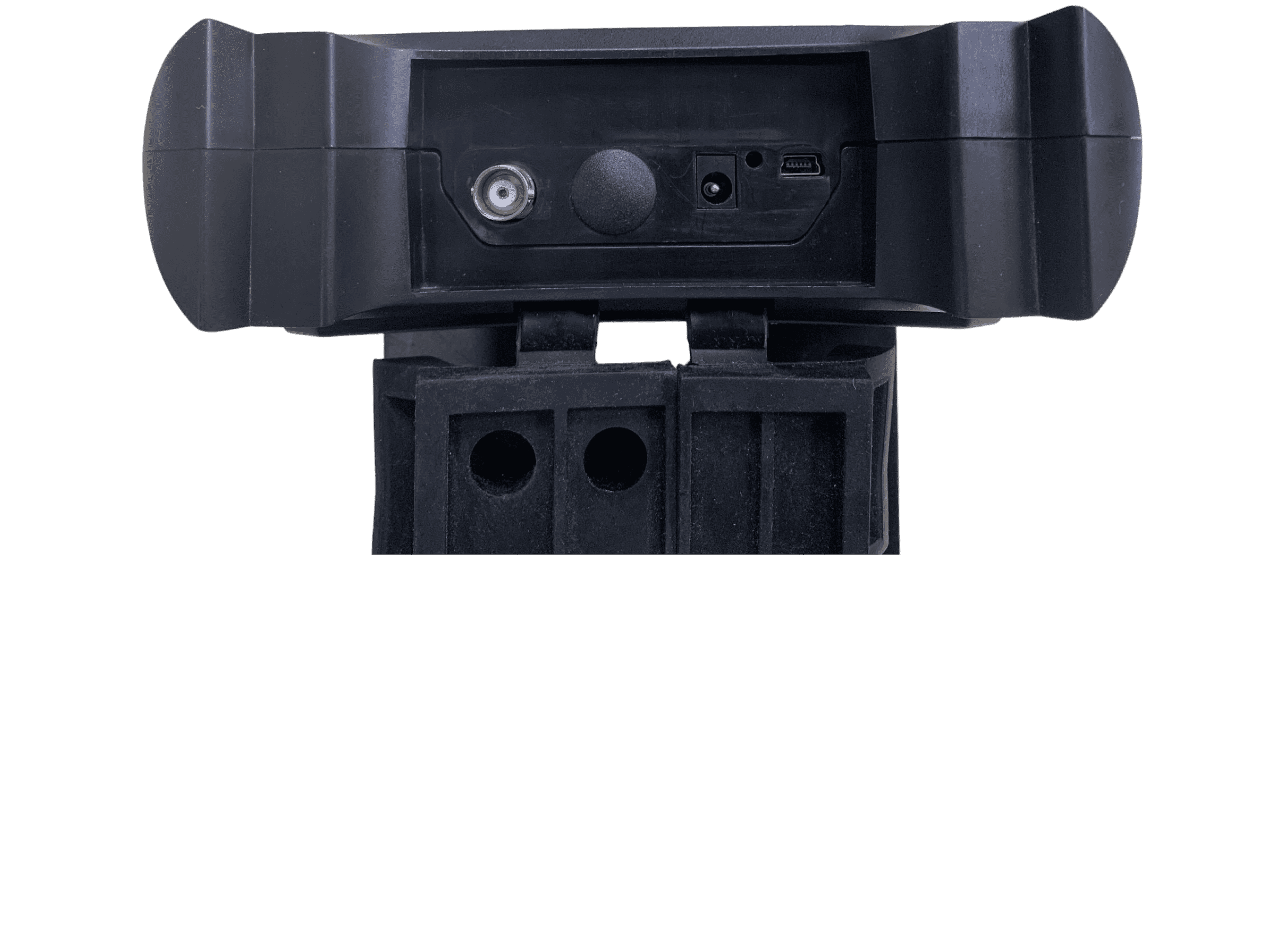

²   Connector type: BNC

²   Working temperature: 0~40

²   Avoid external electromagnetic interference

²   Prevent vibration can meet GB/T 242310.2008 standard (or other equivalent standard)

²   Colorful screen, resolution ratio 320 x 240
