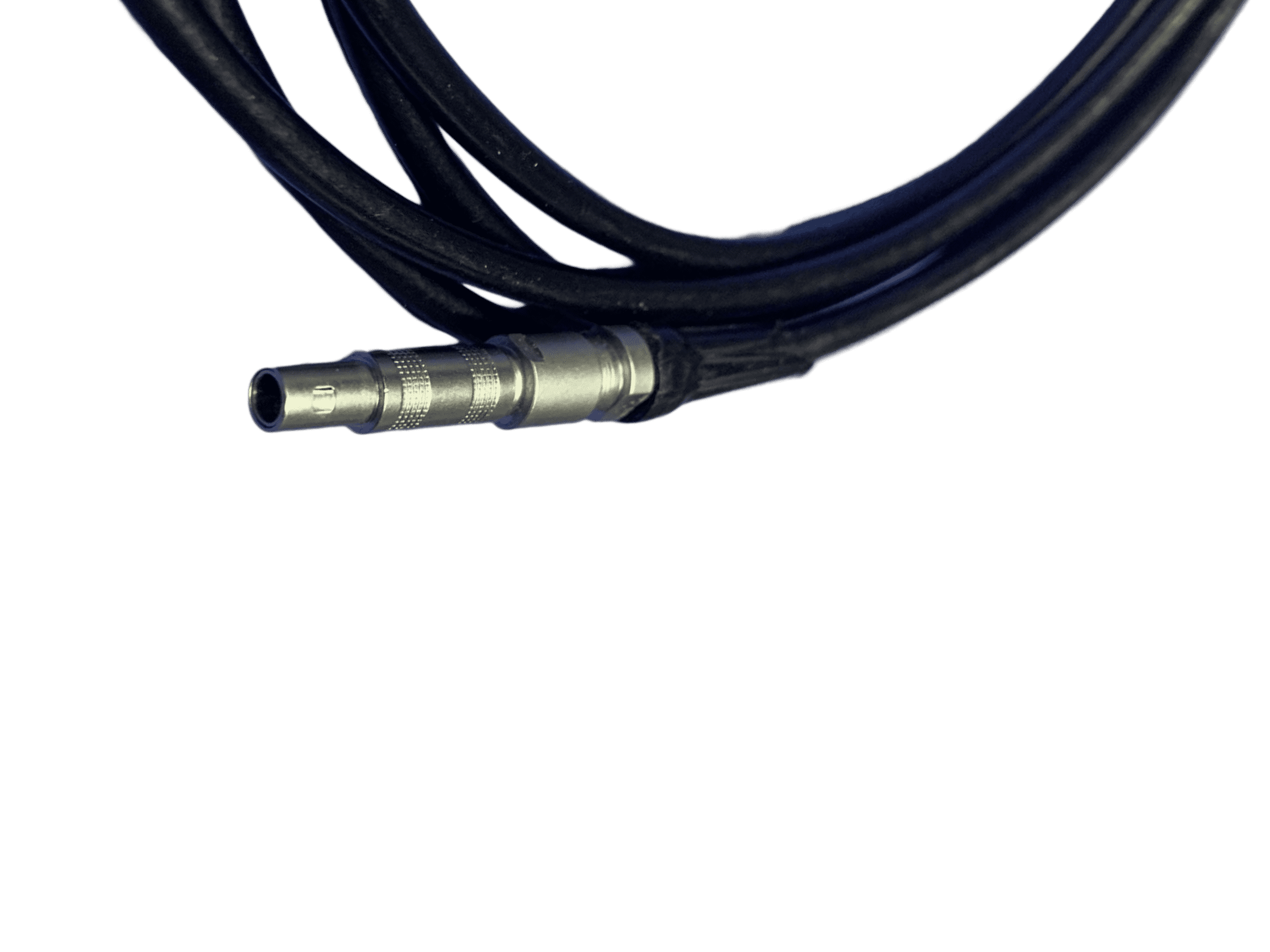

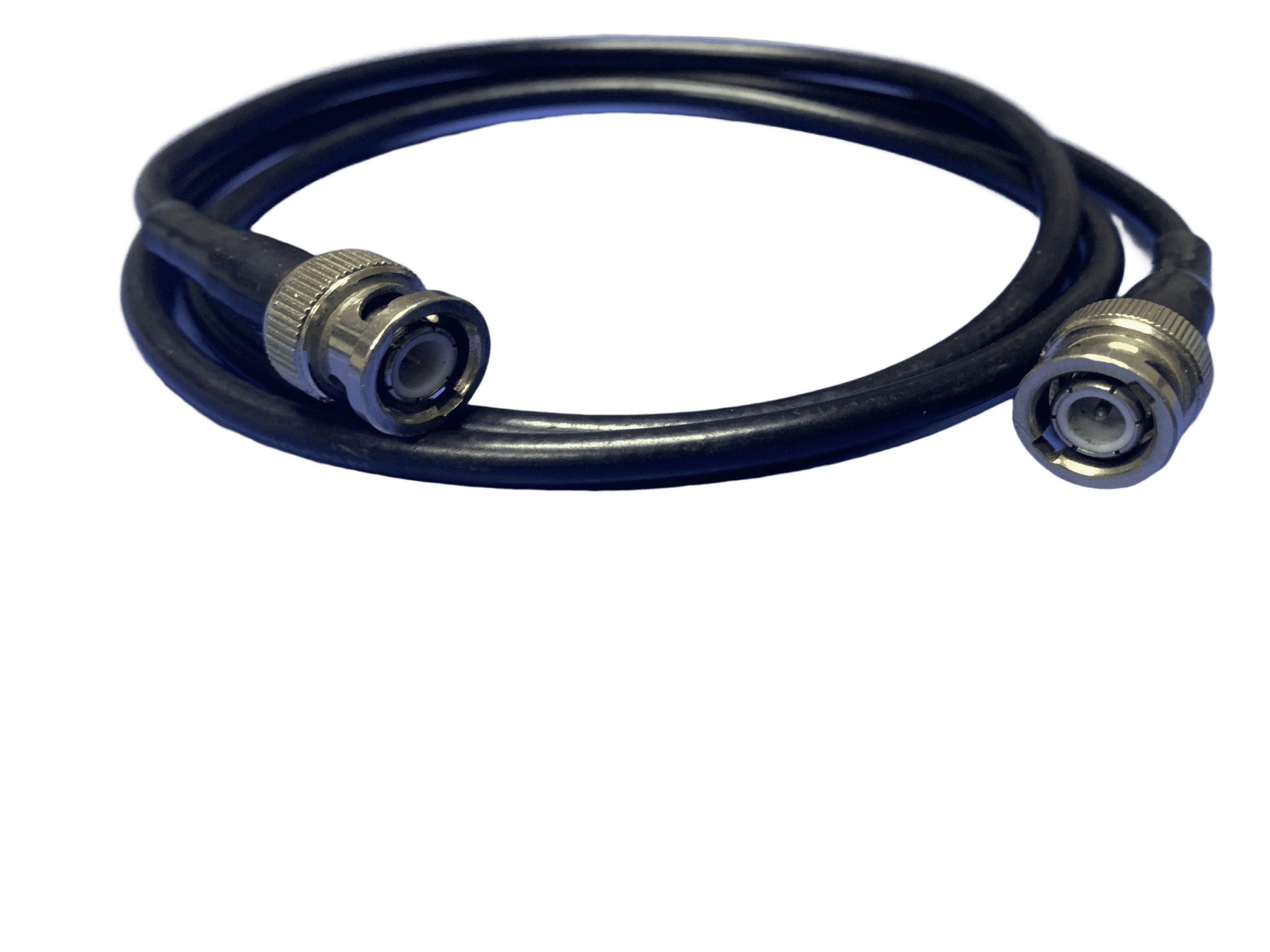

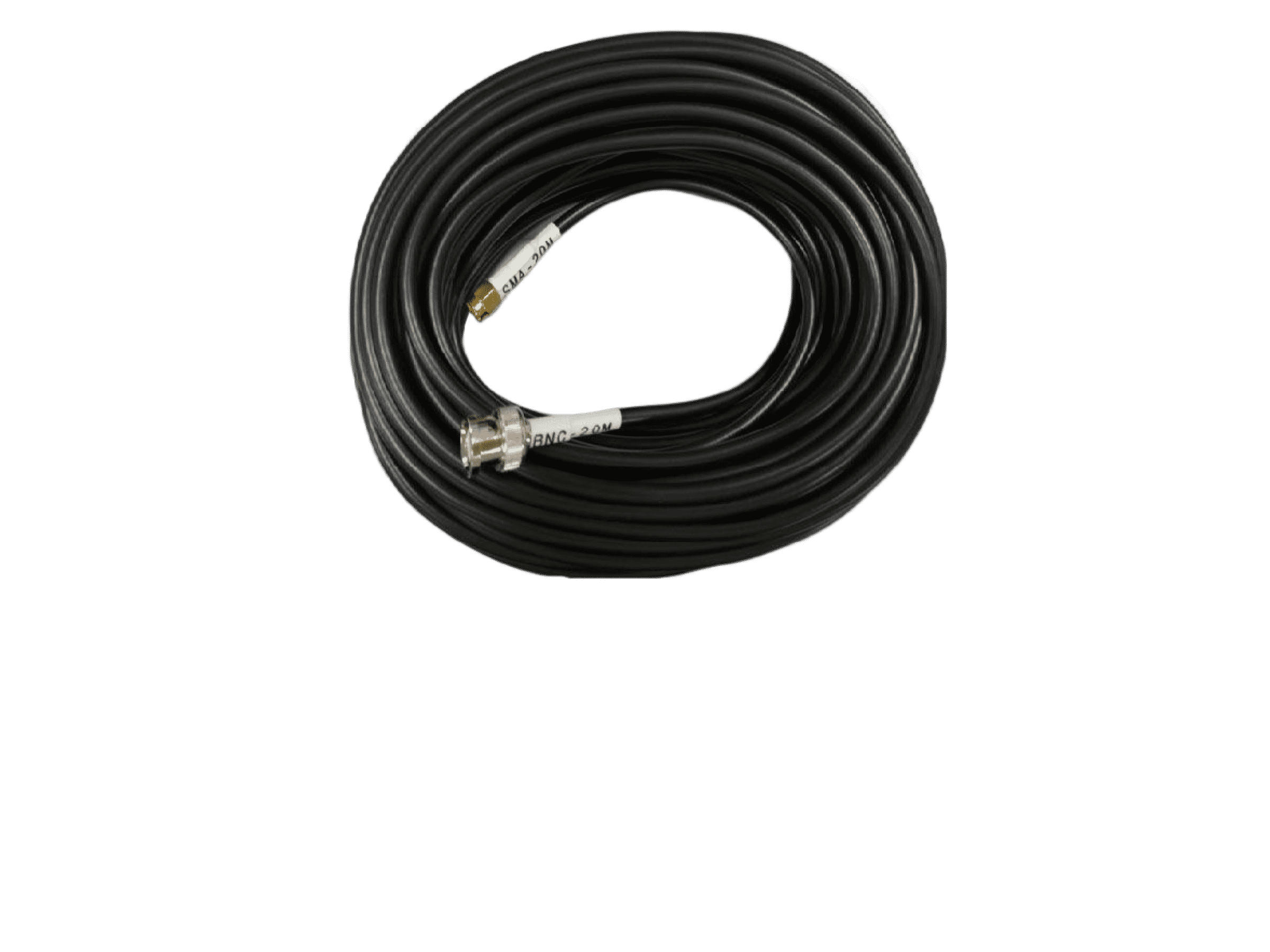

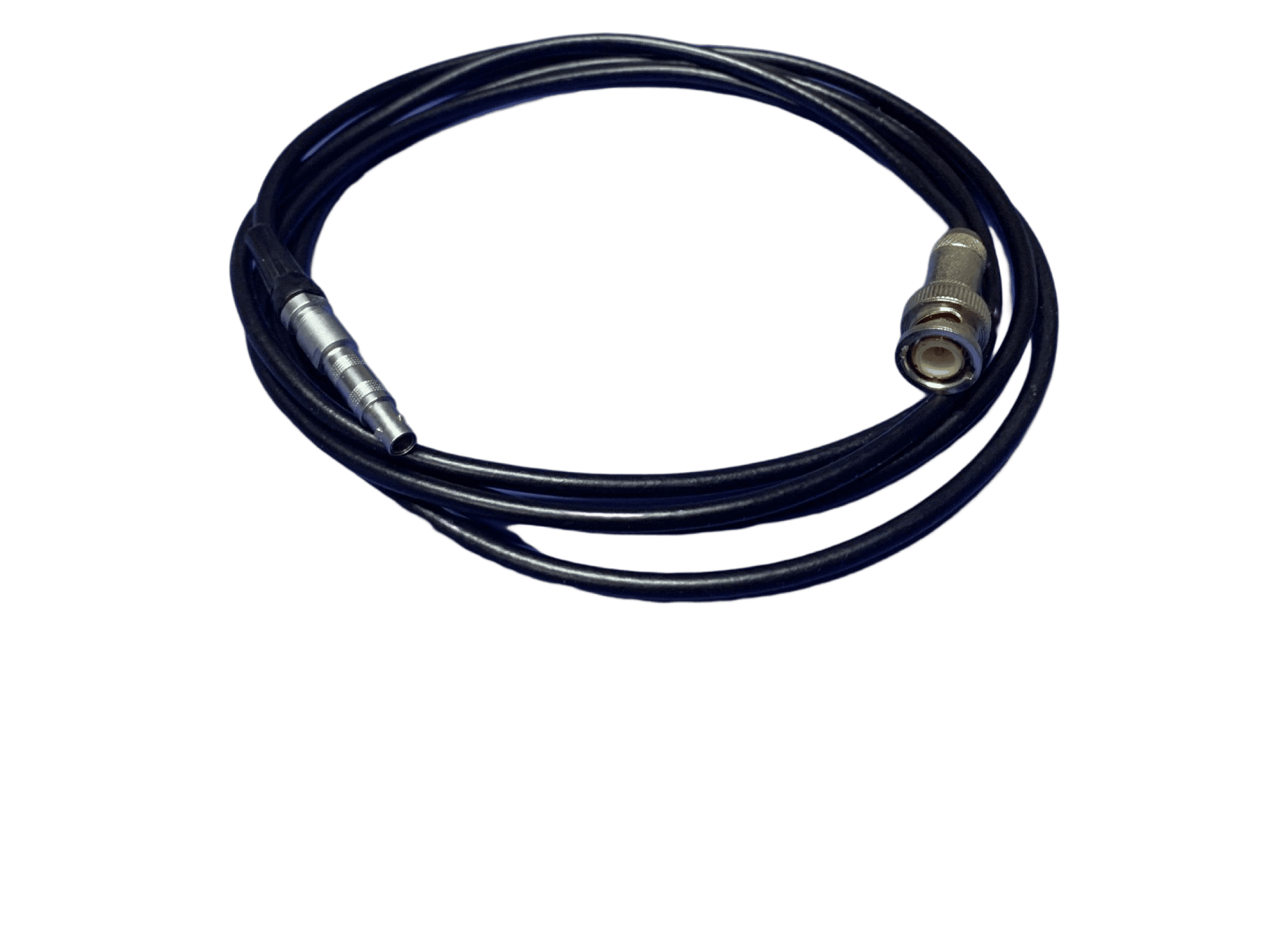

Coaxial cable

Model:

SYV-50-3/STYV-50-2

Description:

Coaxial cable is used for transmitting the AE signals, and as the cable connecting the preamplifier and the acquisition instrument, which has wideband of frequency and excellent noise suppression characteristics.

Features:

Radio frequency cables with Solid polyethylene dielectric

ENQUIRY NOWCONTACT:+86-20-32290092



Coaxial cable is used for transmitting the AE signals,

and as the cable connecting the preamplifier and the acquisition instrument,

which has wideband of frequency and excellent noise suppression characteristics.



Impedance

50±2Ω

Periodic variation of impedance

Sine wave

Attenuation

(Measurement of 500m cable)

10MHz Sine wave

8.5dB17dB/Km

50MHz Sine wave

6.0dB12dB/Km

Transmission rate

0.77CC is the speed of light

Resistance (measured at 20Ω)

10Ω/m





                         Note

Ø   If a coaxial cable larger than 150m is used, a signal compensation device should be installed

Ø   Coaxial cable is vulnerable part, especially two interfaces, do not bump, extrusion when using it




                             Recommended coaxial cable

                               Cable SYV-50-3

Cable STYV-50-2

Radio frequency cables with Solid polyethylene dielectric
